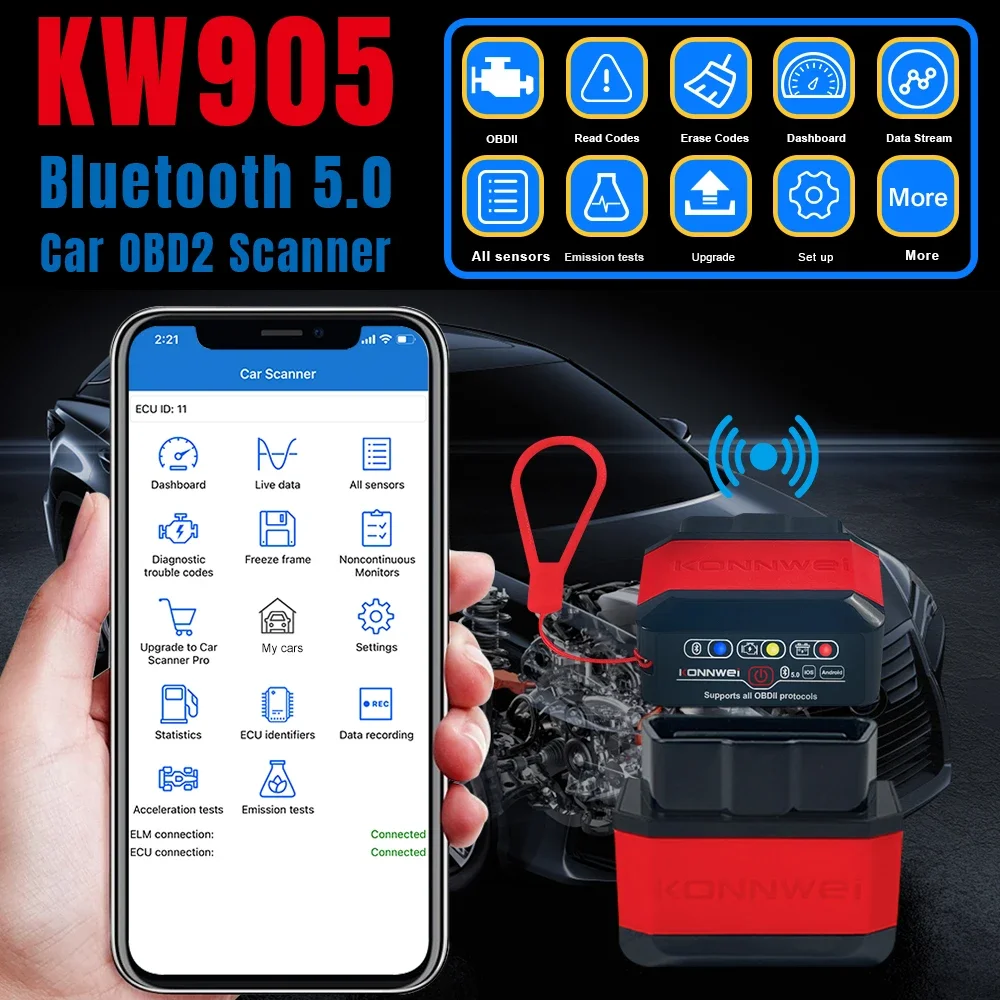

CarVitals™ Smart Car Health Scanner (OBD2 Bluetooth)

Dashboard warning lights, strange engine behaviour, or that uneasy feeling that something isn’t right?

Not knowing what’s happening with your car is stressful and expensive if you guess wrong.

This Car Health Check Scanner connects to your smartphone and helps you understand your car’s condition before small issues become serious problems.

No mechanical knowledge required.
Just plug it in, connect, and check.

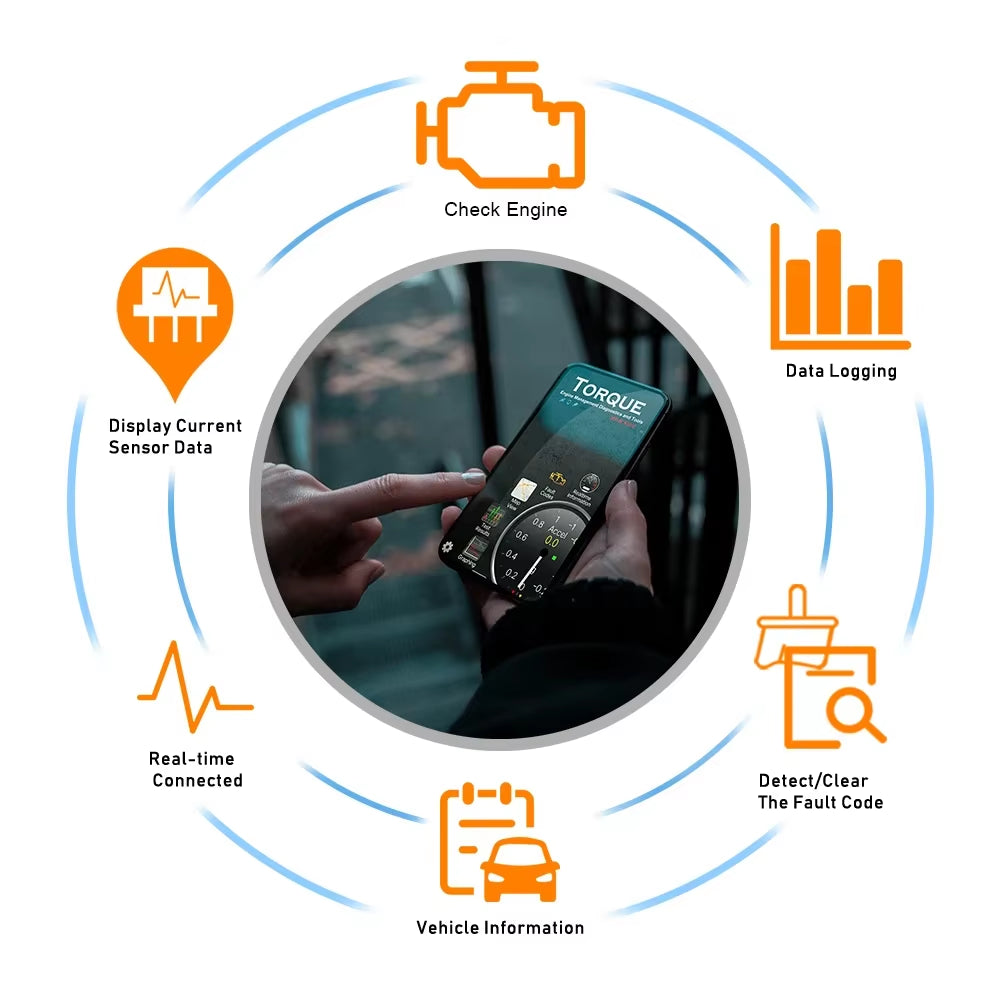

✅ What You Can Do With This Scanner

• Read and clear engine fault codes
• Check your car’s overall health
• Monitor real-time vehicle data
• Avoid unnecessary mechanic visits
• Drive with peace of mind.

📱 How It Works (Simple & Fast)

+ Plug the scanner into your car’s OBD2 port

+ Connect it to your phone via Bluetooth

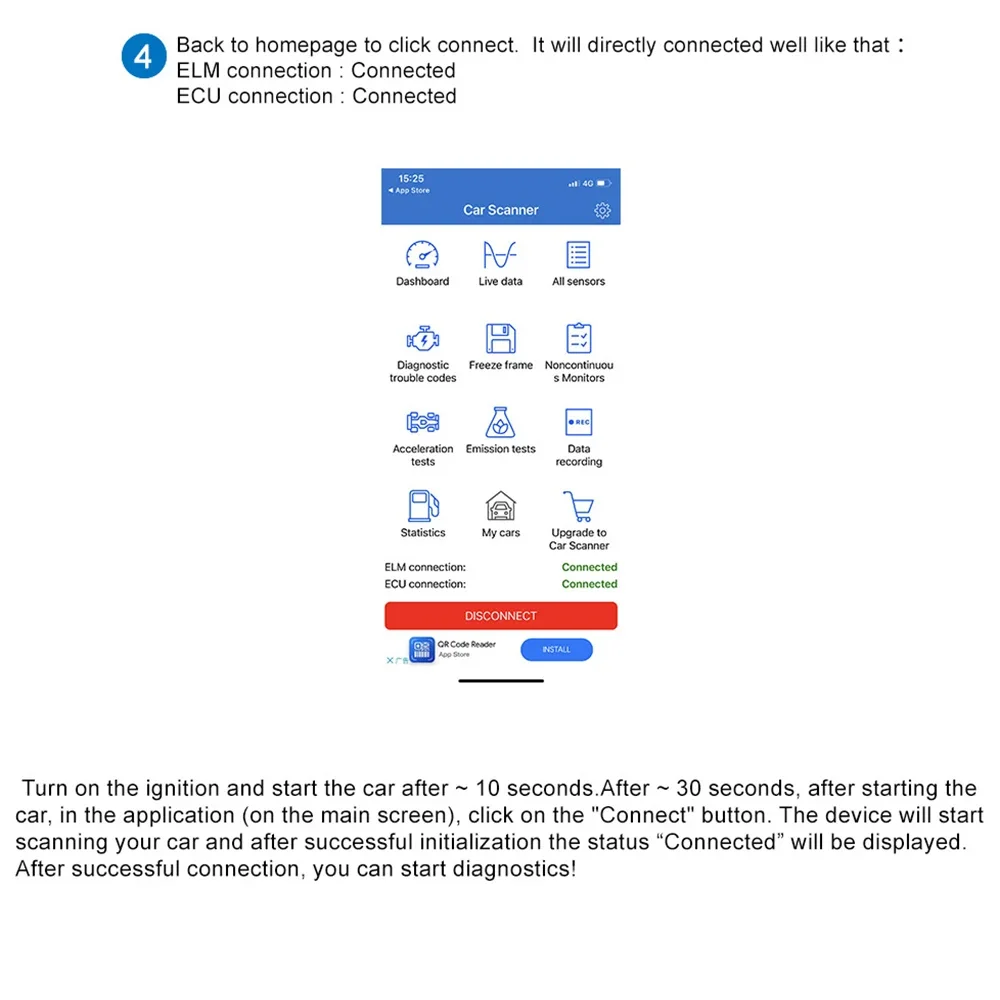

+ Open a compatible app and check your car’s health

Takes less than a minute.

🚗 Vehicle Compatibility (Australia)

✔ Petrol vehicles from 2006 onwards
✔ Diesel vehicles from 2007 onwards
✔ Supports standard OBD2 systems
✖ Not compatible with electric vehicles

📲 Compatible Apps

Works with popular third-party OBD2 apps such as:

• Torque
• Car Scanner
• OBD Fusion
• DashCommand

(Apps are not included.)

⚠️ Important Information

This device provides vehicle health and diagnostic information only.
It does not repair the vehicle or replace professional mechanical inspection.

Konnwei ELM327 V1.5 Bluetooth 5.0 OBD2 Scanner ELM 327 V1 5 OBDII Auto Car Diagnostic Tools ODB2 OBD 2 Code Reader

Purchase Notes!!!

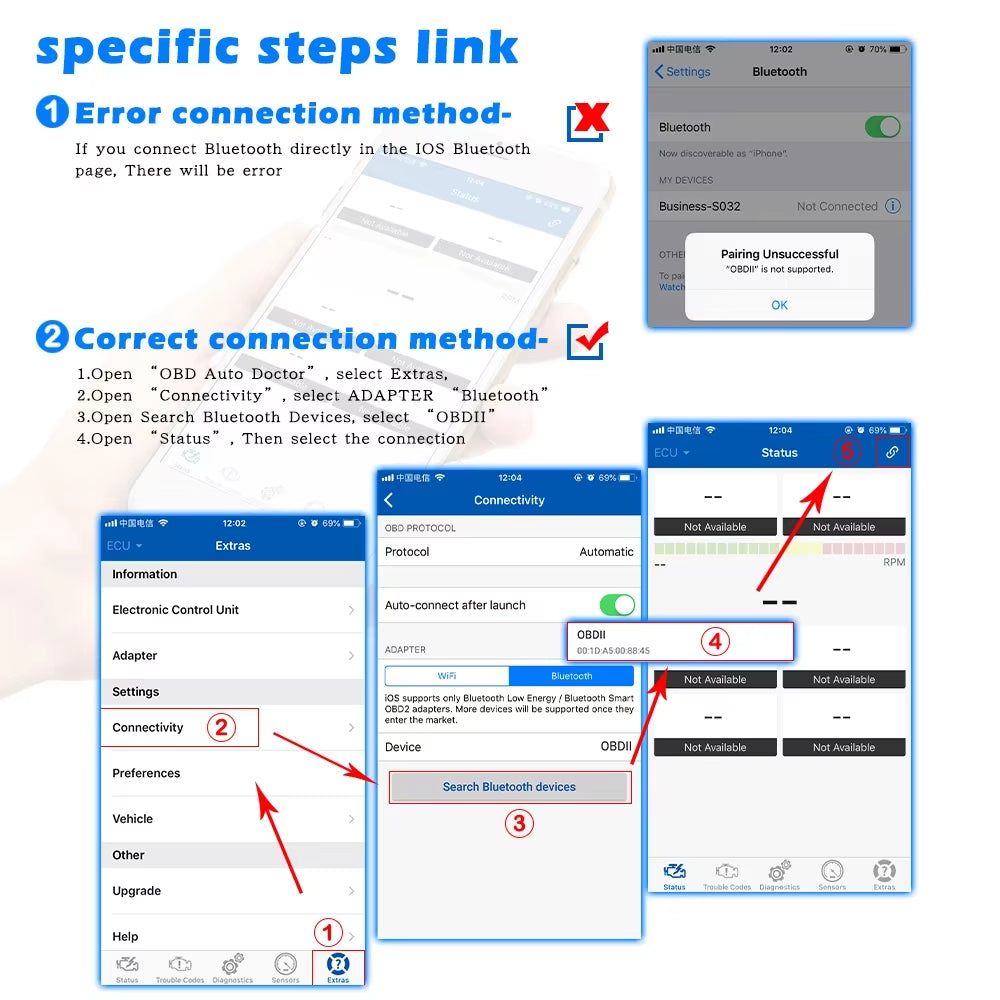

Some customers have feedback that the bluetooth will not connect when they connect to IOS，please follow the tips：（The IOS system cannot support Bluetooth 5.0 ELM327 connection on the Bluetooth page）

1.Plug in the KW901 to the OBD2 interface，and Open the IPhone's Bluetooth first

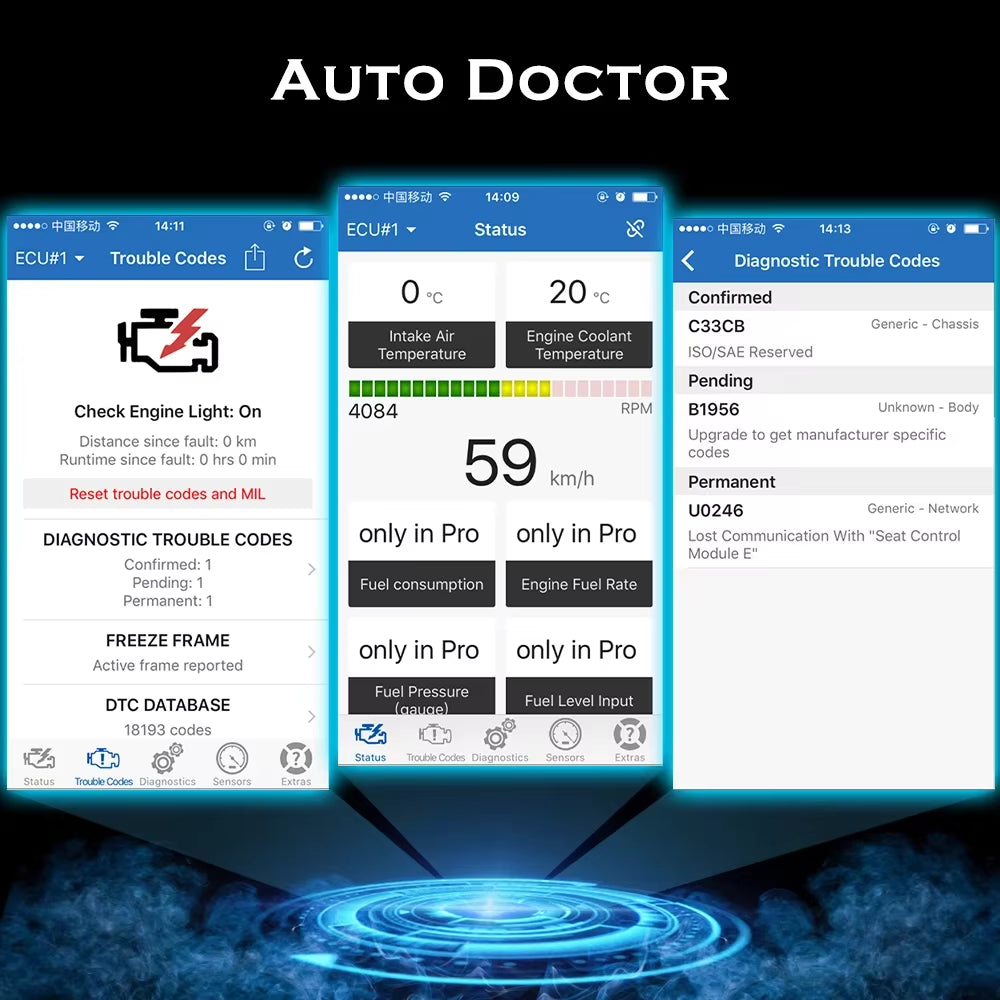

2.Open the software(like AUTO Doctor)

3.Choose "Extras"，then click "Connectivity "，choose"Bluetooth"，and click "Device",choose "Konnwei"

4.Connect Bluetooth in the"Connectivity "，then refresh software

For IOS Connection method:

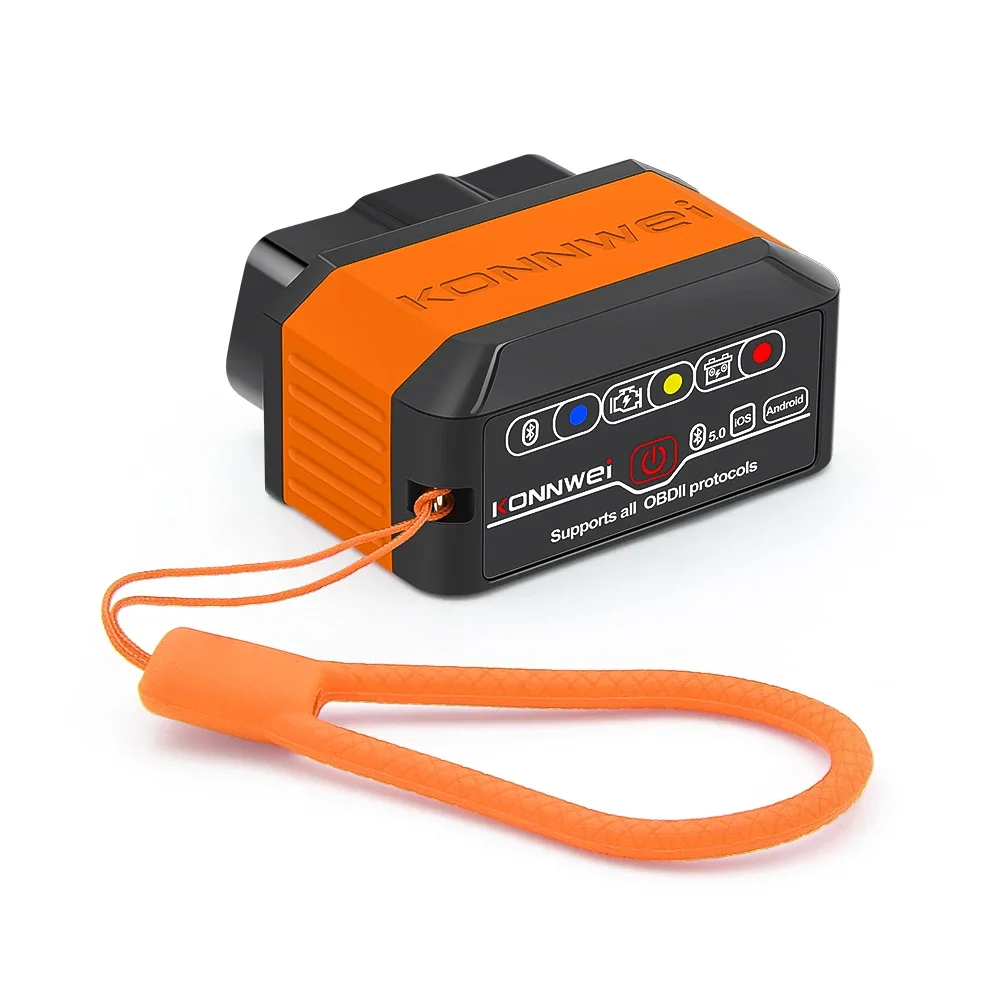

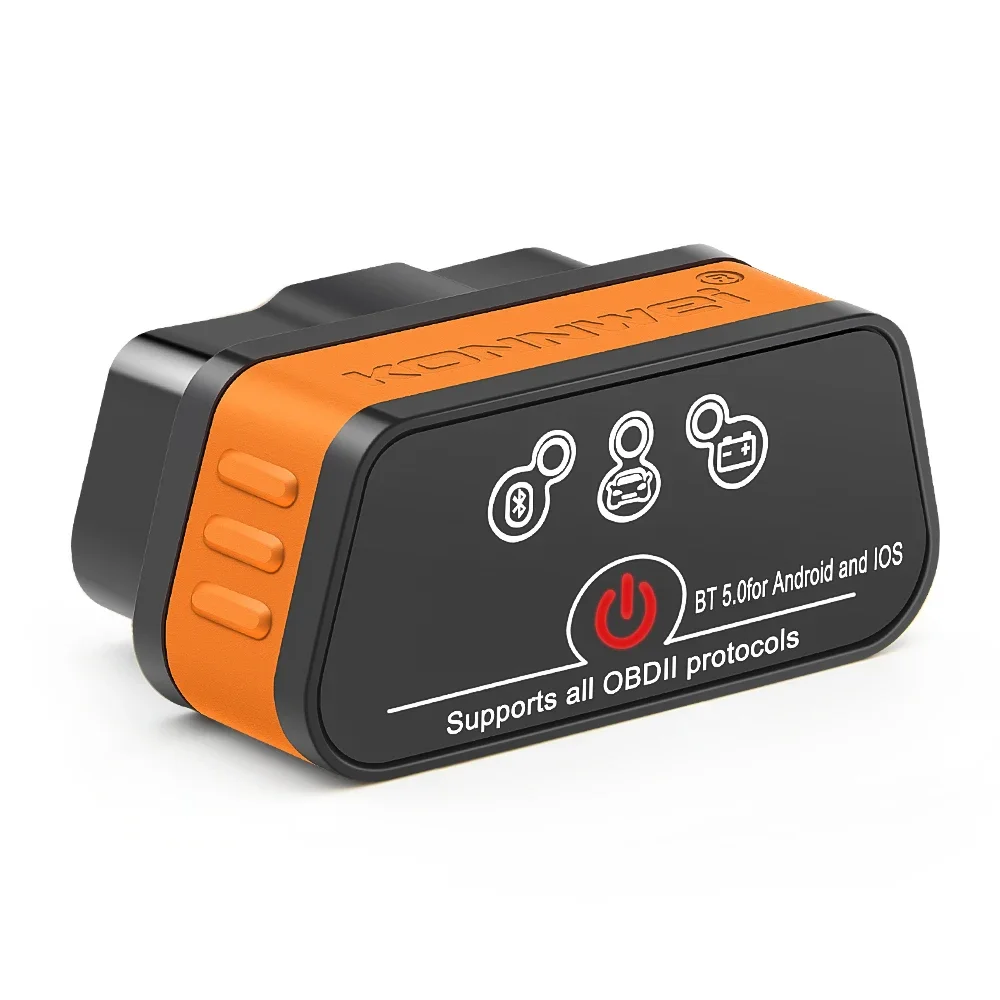

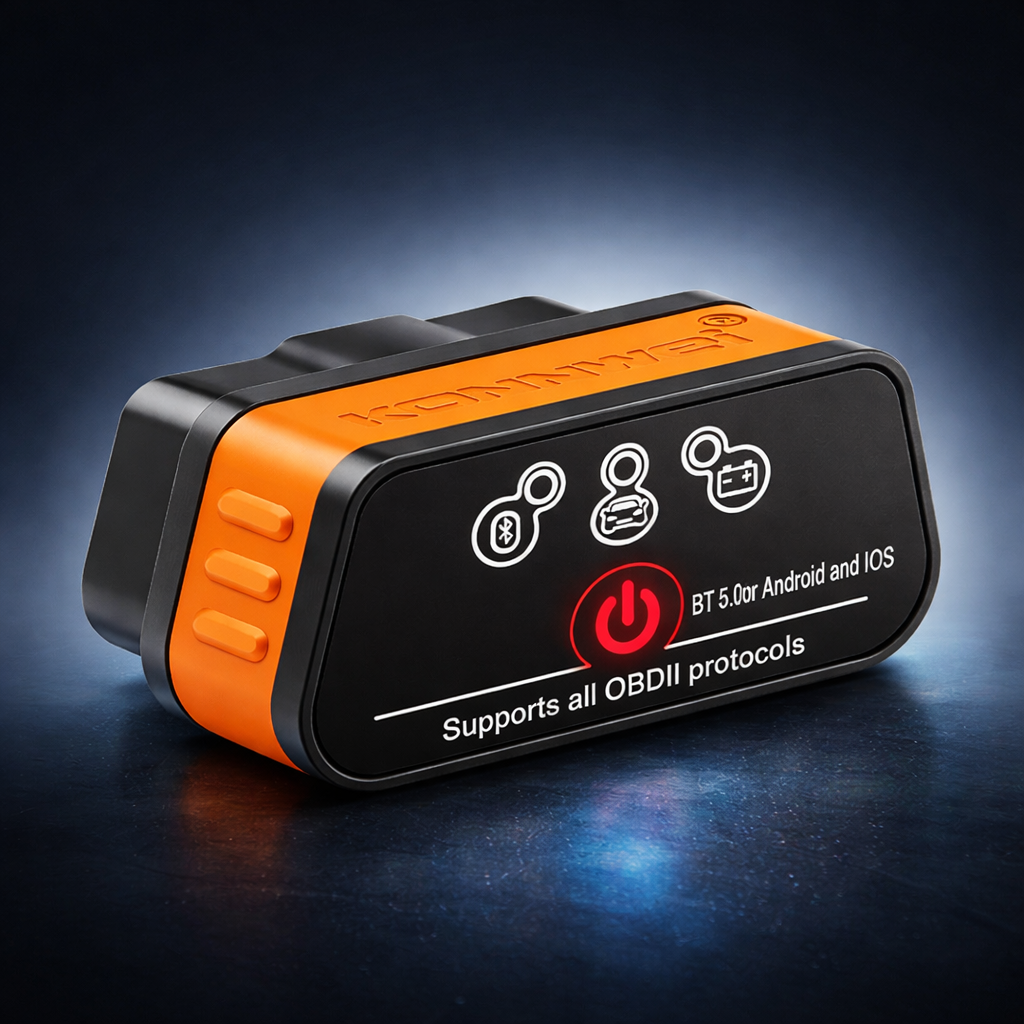

ELM327 V1.5 (Bluetooth BT5.0 )Features:

* Small size, compact structure. Plug and never unplug* Stable wireless connection via Wireless BT5.0* No wires or batteries (adapter is powered by the 12V Vehicles battery)* 30 Minutes without communication, it will automatically go to sleep mode.* Ultra low cumsumption in sleep-mode, less than 10MA* Supports ALL OBDII protocols, widest coverages* The adapter uses the fast communication mode , up to 30PID/S.* True ON-OFF button, you can press button to turn off the elm if not in use.

ELM327 V1.5 (Bluetooth BT5.0) Function List:

1.Read diagnostic trouble codes, both generic and manufacturer specific
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure

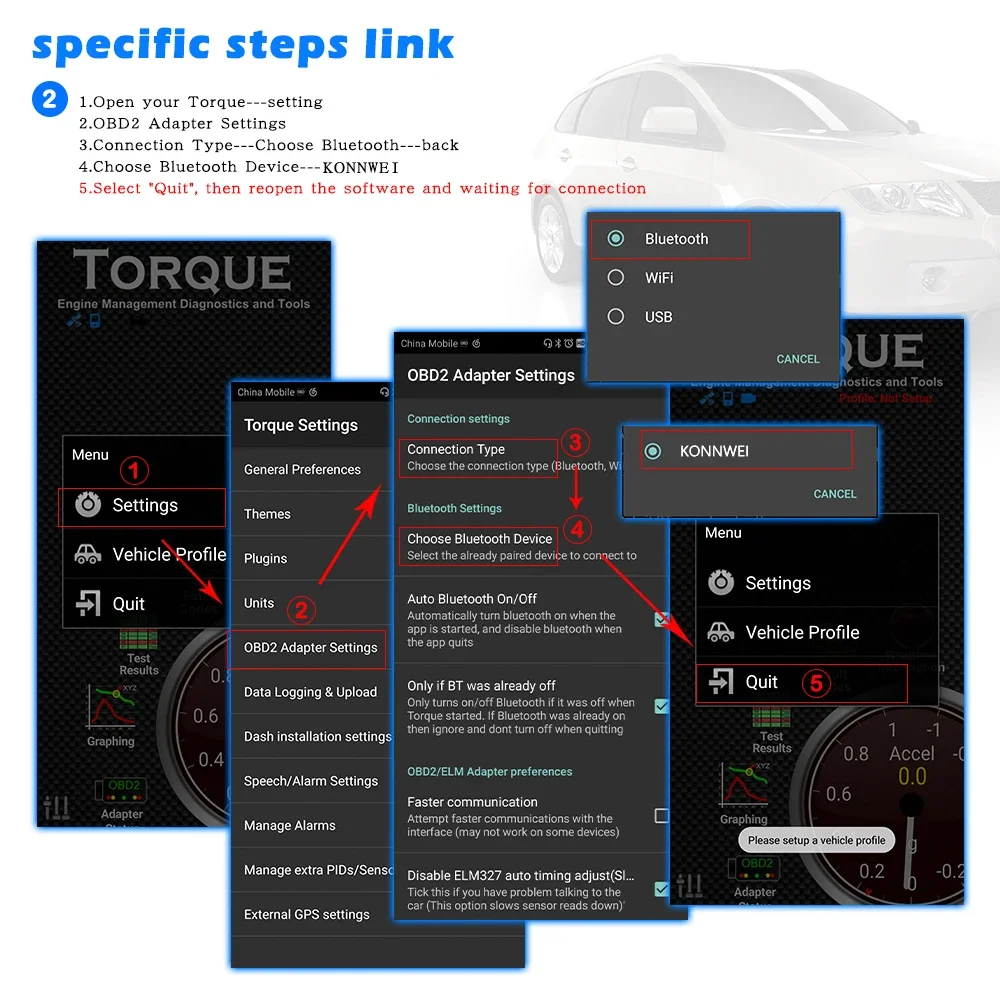

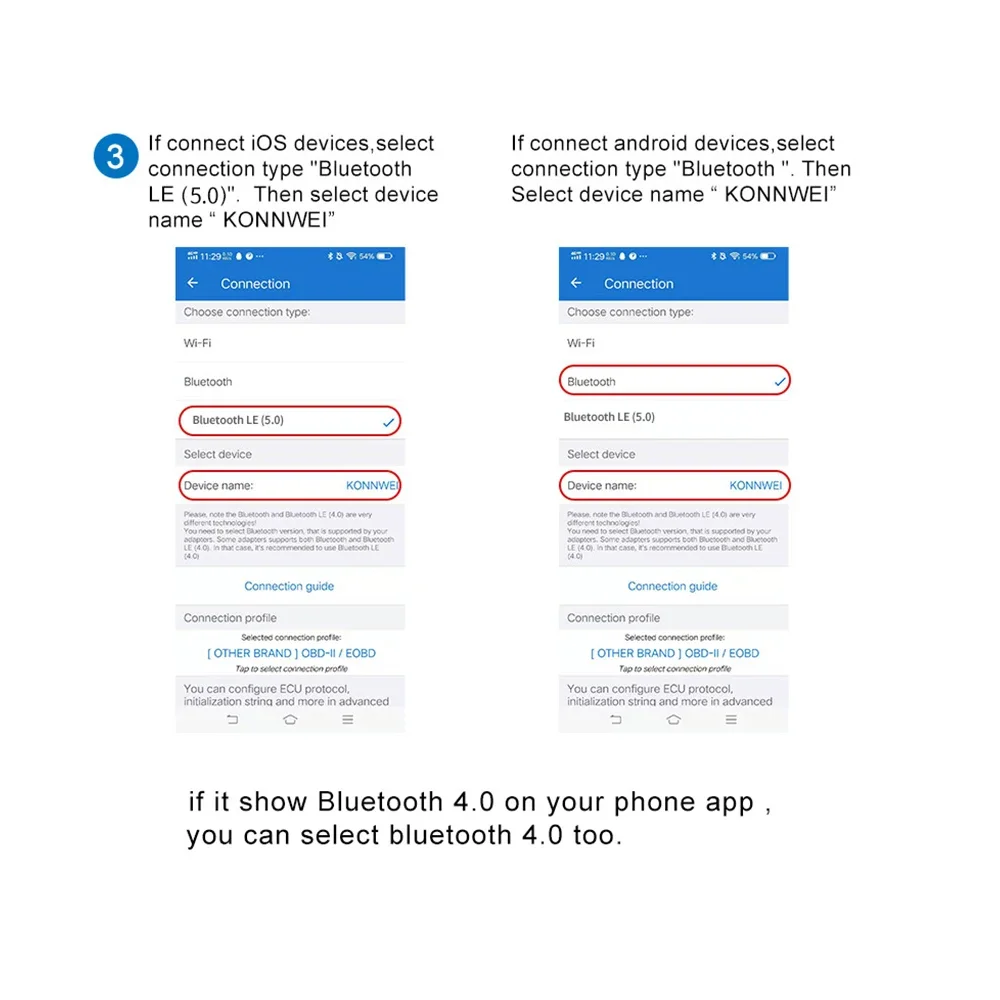

How to setup B-luetooth pairing: BLE5.0 Dual mode version

For Android users:
Home screen
Go to setting page
Select V-LINK Default password is “1234”
Device paired

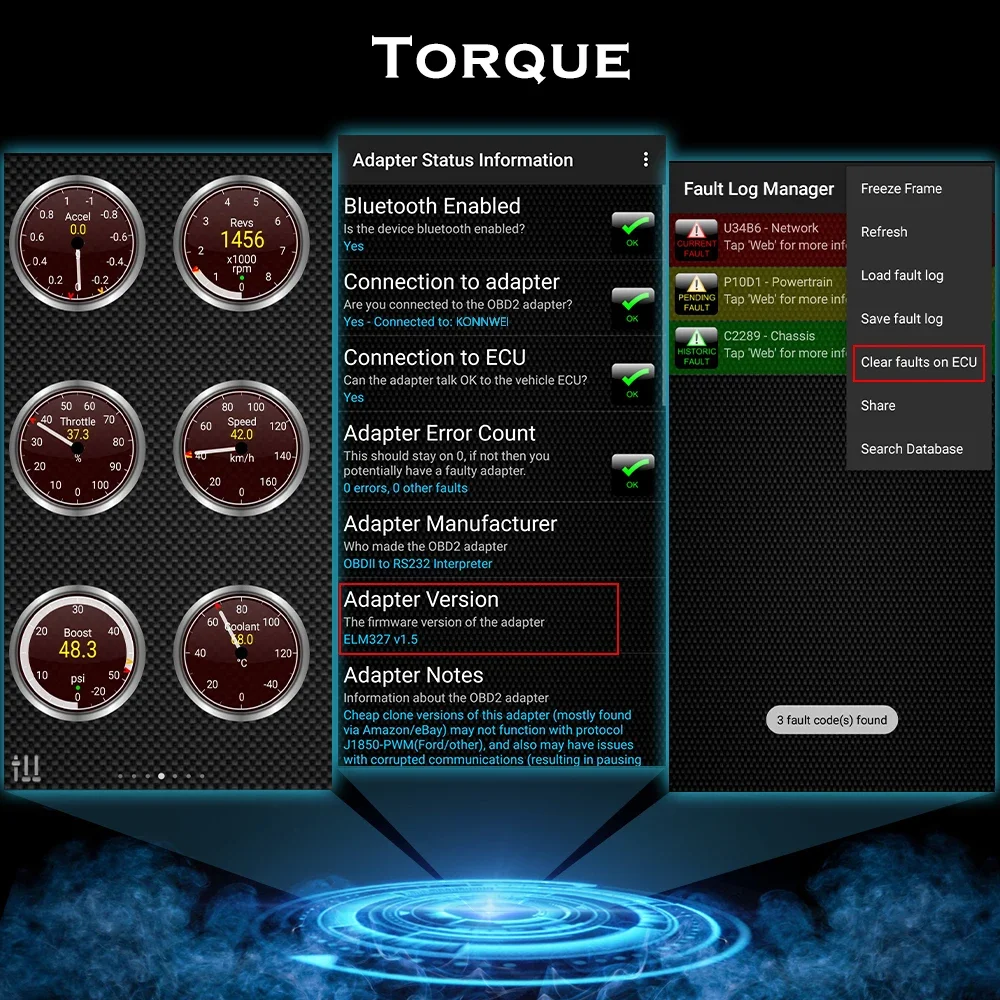

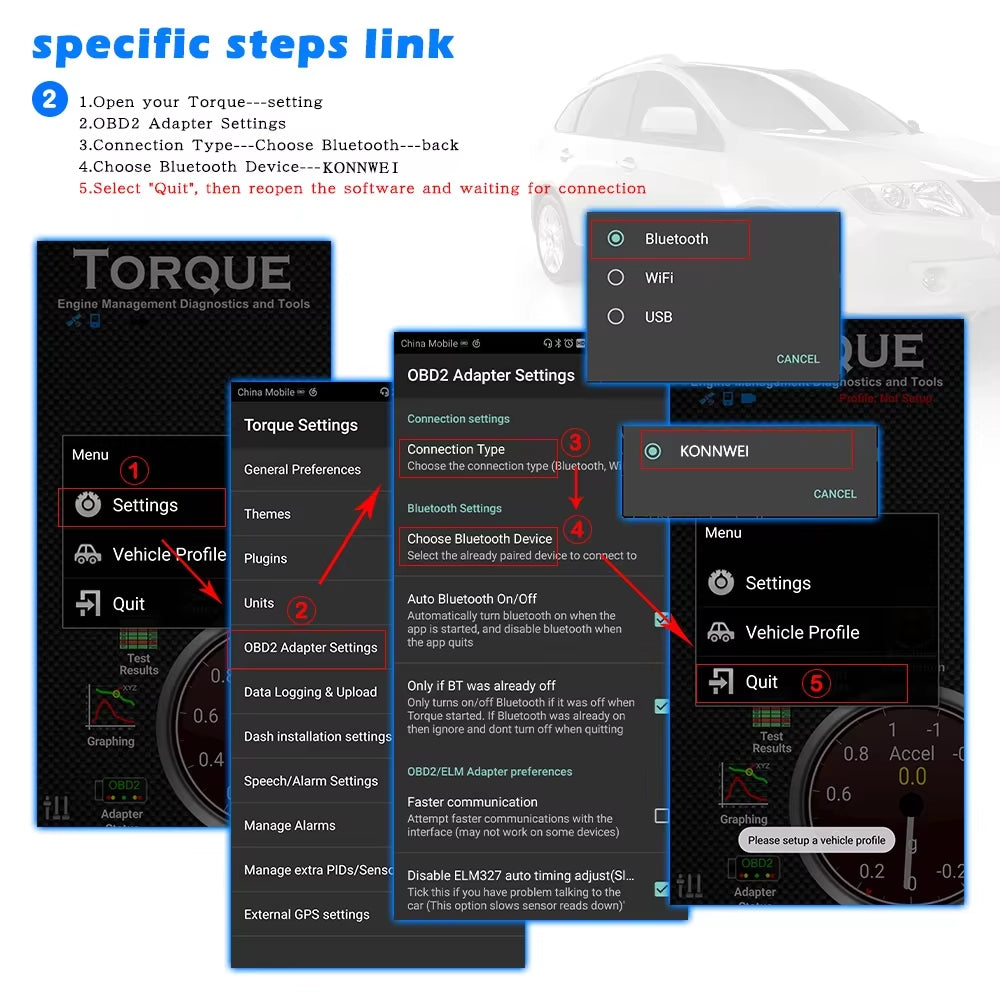

Run Torque app
Go to Torque app OBD II adapter setting
Choose connecion type>Bluetooth
Choose B-luetooth device>V-LINK
Exit Torque app completely
Run Torque app
Connected

For iOS users:
Home screen
Go to setting page
Click on B-luetooth function
(Device name is invisible)
Run Accurate app
Go to Accurate app setting page
Select B-luetooth and connect
Exit Accurate app and run again
Connected

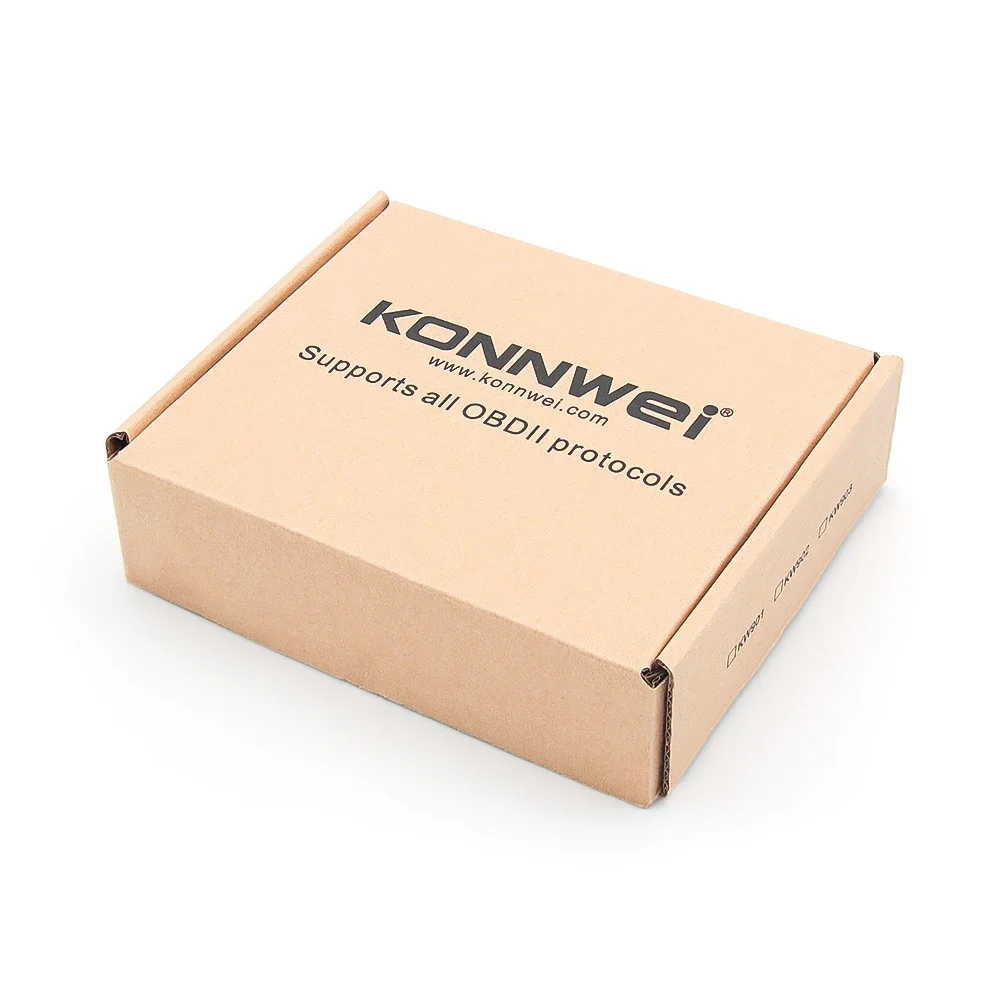

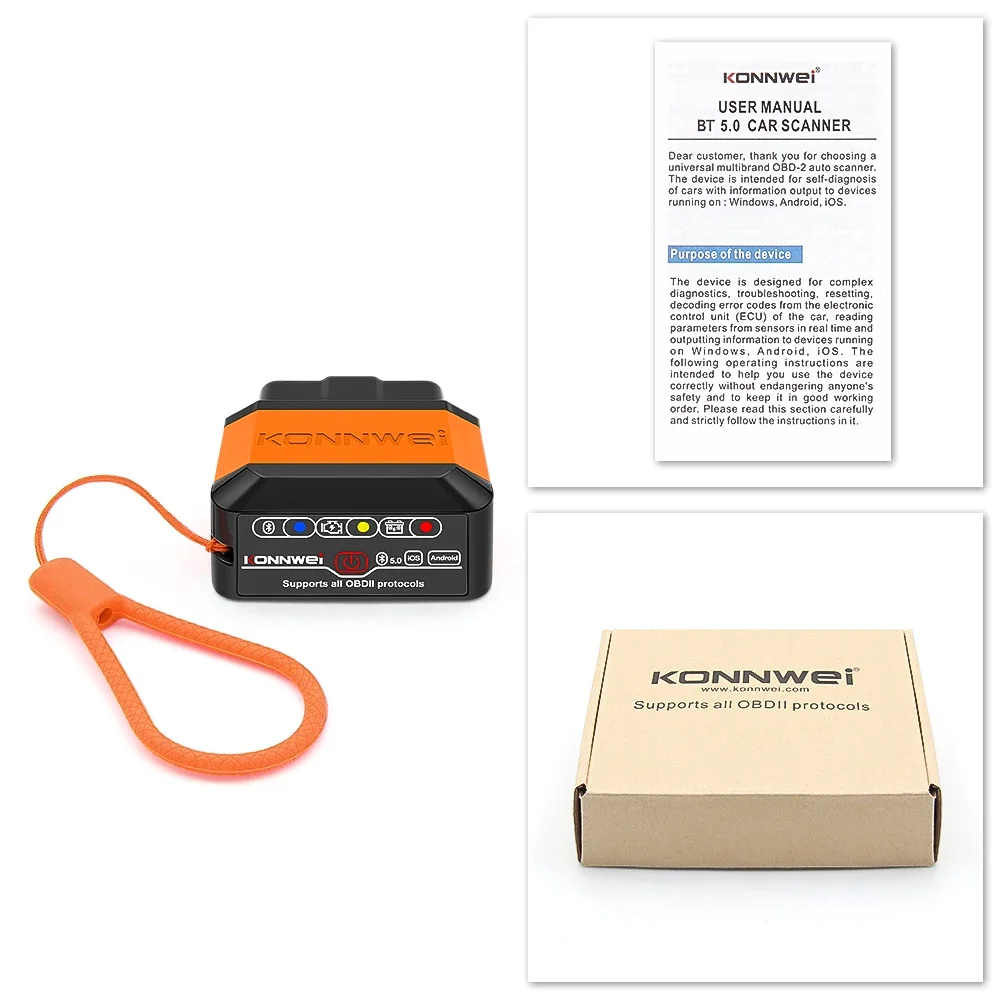

PACKING LIST

1x KW902 Wireless BT5.0 scanner (pic18f25k80 chip set)
1x English User Manual
